Autofill Enterprise Co., Ltd.

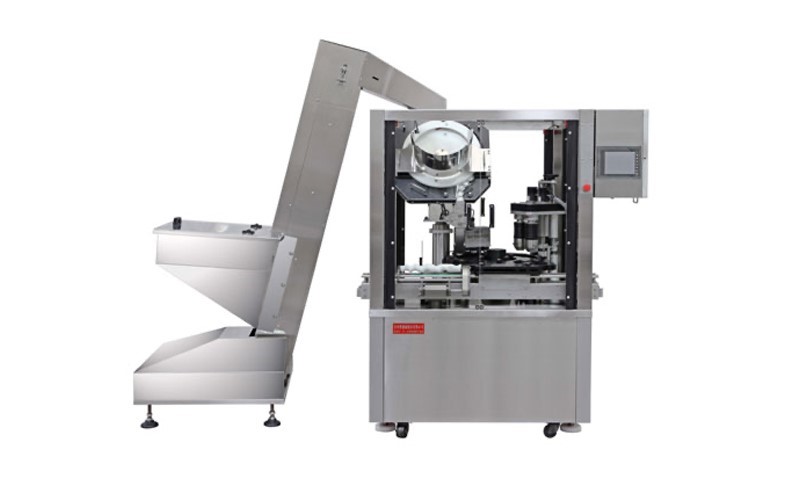

AFSC6000 Indexing capping machine

Model AFSC6000 Fully Automatic Indexing Capping Machine;. Designed for Tightening the screw on cap ; press on cap ; Alu-Ropp cap.

1. Exterior of main machine is using SUS304.
2. Magnetic torsion is adjusted by capping head, Stability of torsion is at the range of max 25kg/cm2 +/-0.5%.
3. designed for Tightening the screw on cap.
4. designed for Tightening the press on cap.
5. designed for Tightening the Alu-Ropp cap.
6. Fast change size in10 minute, and easy machine cleaning.
7. Capping head Stainless steel SS304 construction.
8. Meets cGMP , Pic/s GMP & GAMP5 requirements

分享到

 Technical Data:

SUS304 Capping Head 2
Capacity 4000~6000bph
Machine work high (Conveyor) 900-950mm.
Filling job recipe system 5
Compressed air None use
Power consumption 2.0KW
Power source AC220V,50/60Hz, 3phase/single phase
Machine Weight Approx. 1800Kgs
Machine dimensions L1450 X W1450 X H1850(mm.)
